In the world of CNC machining, precision is key. One crucial aspect of achieving precision in metalwork is the process of anodizing. Anodizing not only enhances the appearance of aluminum but also adds durability and corrosion resistance to the material. In this article, we will delve into the fascinating world of multi-color anodizing for aluminum.








What is Anodizing?






Anodizing is an electrochemical process used to enhance the surface of metals, primarily aluminum. It involves creating a protective oxide layer on the metal's surface by immersing it in an electrolytic bath and passing an electric current through it. This process converts the outer layer of the metal into a more durable, corrosion-resistant, and often aesthetically appealing finish.

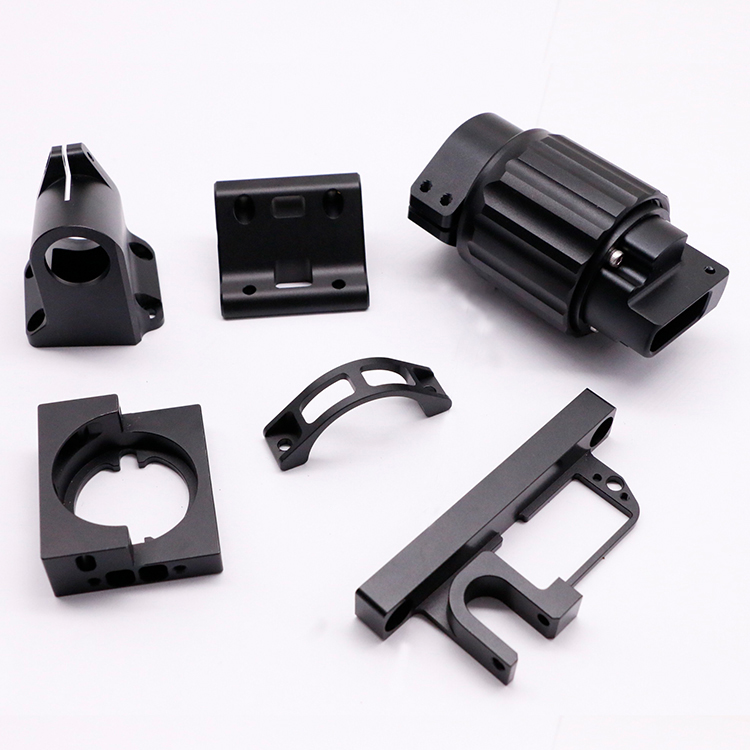

Anodizing cnc machining parts








What is Multi-Color Anodizing?







Multi-color anodizing is a process that combines multiple colors on the same part. This can include two-color to multi-color parts. The color can be black, transparent, gold, green, blue, red, military green, etc.



Multi-color anodizing is a specialized variation of the anodizing process, primarily applied to aluminum. It involves creating a surface finish with multiple distinct colors on a single aluminum part. This process is achieved through precise control of the anodizing and dyeing stages.

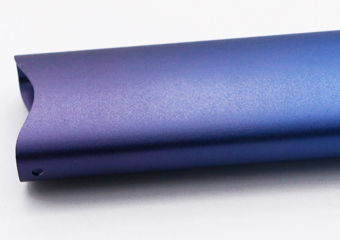

Multicolor anodized surface





Here's How Multi-Color Anodizing Works:





Preparation: Before anodizing, the aluminum surface is meticulously cleaned and prepared to ensure the best results.



Anodizing: The aluminum part is immersed in an anodizing bath, typically containing sulfuric acid, and subjected to an electrical current. This process forms an oxide layer on the aluminum's surface, which is critical for color absorption.



Dyeing: In multi-color anodizing, different colored dyes are applied to specific areas of the aluminum. This step allows for the creation of various colors on the same part.



Sealing: After dyeing, the part is sealed to lock in the colors and enhance the durability of the finish.





The key to successful multi-color anodizing is precise control over the dyeing process, which can involve masking off sections of the aluminum or using various techniques to achieve intricate and visually appealing color patterns.



This technique is often used in industries where aesthetics and design flexibility are crucial, such as jewelry, decorative pieces, and architectural applications. Multi-color anodizing not only adds vibrant colors to aluminum but also provides the durability and corrosion resistance associated with traditional anodizing.











What is the Purpose of Multi-Color Anodizing?







The primary purpose of multi-color anodizing is to enhance the aesthetic appeal and design flexibility of aluminum products while retaining the benefits of traditional anodizing, such as increased durability and corrosion resistance. Here are the key objectives of multi-color anodizing:





Aesthetic Enhancement: Multi-color anodizing allows for the creation of visually striking and vibrant color patterns on aluminum surfaces. This is particularly valuable in industries where aesthetics play a significant role, such as jewelry, decorative art, and architectural design.



Design Flexibility: Multi-color anodizing offers designers and manufacturers the ability to incorporate intricate and unique color schemes into their products. It provides a wide range of creative possibilities, making it suitable for customized and artistic applications.



Durability: Like traditional anodizing, multi-color anodizing forms a protective oxide layer on the aluminum surface. This layer enhances the material's durability, making it more resistant to scratches, wear, and corrosion. This is especially important for products intended for outdoor or harsh environments.



Corrosion Resistance: The anodized layer created during multi-color anodizing maintains the inherent corrosion resistance of aluminum. This ensures that even aesthetically pleasing products remain durable and functional over time.



Versatility: Multi-color anodizing can be applied to a wide range of aluminum products, from small decorative items to larger architectural elements. Its versatility makes it suitable for various industries and applications.







In summary, the purpose of multi-color anodizing is to combine the visual appeal of vibrant colors with the protective and functional benefits of traditional anodizing. It opens up new design possibilities and allows for the creation of durable, eye-catching aluminum products.












Multicolor Anodizing: Materials and Industry Applications









Multi-color anodizing is primarily used on aluminum materials. It is a specialized surface treatment technique designed specifically for aluminum due to its unique properties. This process can be applied to various aluminum alloys and forms, including sheets, extrusions, and castings. Some common applications and industries where multi-color anodizing is used on aluminum materials include:





Jewelry: Multi-color anodizing is popular in the jewelry industry for creating vibrant and customized pieces. It allows for intricate and colorful designs on aluminum jewelry items.



Decorative Art: Artists and craftsmen use multi-color anodizing to add artistic and aesthetic appeal to aluminum sculptures, artwork, and decorative pieces.



Architectural Design: In architecture, multi-color anodizing is employed to enhance the appearance of aluminum components used in building facades, interior design elements, and signage.



Consumer Products: Some consumer products, such as electronics casings and sporting goods, may feature multi-color anodized aluminum for both visual appeal and durability.



Automotive Accessories: Multi-color anodizing can be found in automotive accessories, such as custom car parts and trim, to create unique and colorful designs.



Aerospace: While less common, multi-color anodizing can be used in aerospace applications where lightweight, corrosion-resistant materials are needed.



Customized Products: Any industry or application that requires customized and visually appealing aluminum components can benefit from multi-color anodizing.





It's important to note that multi-color anodizing is not suitable for all materials. It is specifically tailored to aluminum due to the unique properties of aluminum alloys that allow for the formation of a durable and colorful oxide layer during the anodizing process. Other metals may require different surface treatment techniques to achieve similar results.












Multi-Color Anodizing Process








Multi-color anodizing is a specialized surface treatment process applied to aluminum. It involves creating a surface finish with multiple distinct colors on a single aluminum part. Below are the basic steps and the process involved in multi-color anodizing:





1. Surface Preparation:



The first step is to thoroughly clean the aluminum surface to remove any contaminants, oils, or impurities. This ensures that the anodizing process will be successful.










2. Anodizing Bath Preparation:



An electrolytic bath is prepared, typically containing sulfuric acid. The bath serves as the medium through which the anodizing process occurs.






3. Anodizing:



The aluminum part is immersed in the anodizing bath.


An electric current is passed through the bath, with the aluminum part serving as the anode (positive electrode). This process causes the formation of an oxide layer on the surface of the aluminum.






4. Dyeing:



In multi-color anodizing, different colored dyes are applied to specific areas or sections of the aluminum surface. This is where the customization of colors occurs.


The dyes are absorbed into the porous oxide layer created during anodizing.

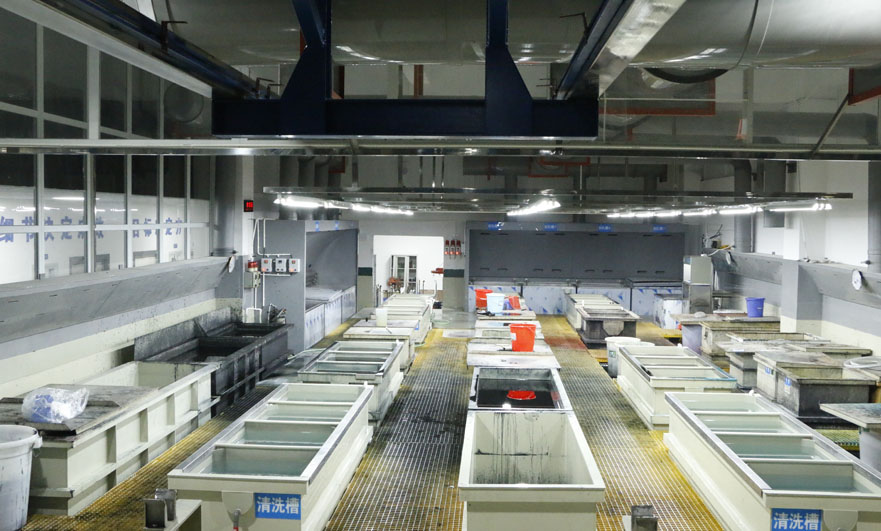

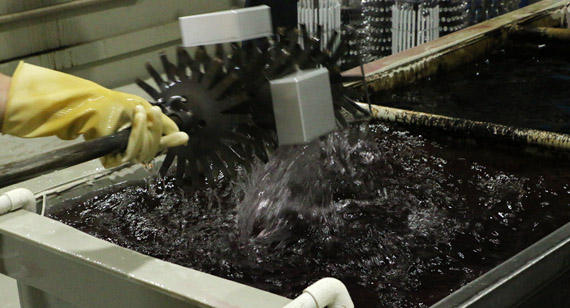

cnc machining parts Dyeing






5. Sealing:



After dyeing, the aluminum part is sealed. Sealing helps lock in the colors and enhances the durability of the finish.


Common sealing methods include hot water sealing or steam sealing.






6. Quality Control:



Quality control checks are performed to ensure that the desired colors and finish have been achieved. This may involve visual inspection and color matching.

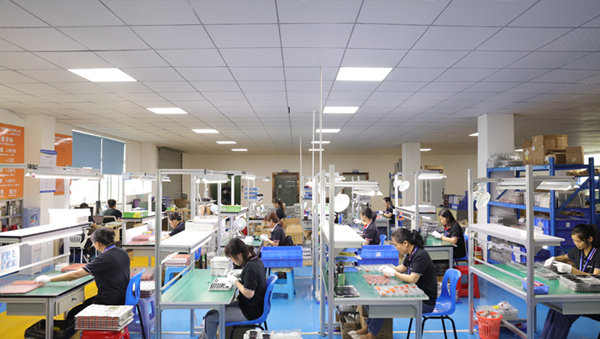

Quality Control






7. Additional Processing (Optional):



Depending on the desired design, additional processes such as masking, stenciling, or selective anodizing may be performed to create intricate color patterns.






8. Final Inspection:



A final inspection is conducted to verify that the multi-color anodizing process has been successfully completed and that the aluminum part meets the required quality standards.
The key to achieving the desired multi-color effects in anodizing lies in precise control of the dyeing process. By masking off specific areas, using different dyes, or employing various techniques, intricate and visually appealing color patterns can be created on the aluminum surface.





Multi-color anodizing is commonly used in industries where aesthetics, design flexibility, and customization are essential, such as jewelry, decorative art, and architectural applications. It combines the benefits of anodizing, such as enhanced durability and corrosion resistance, with the ability to add vibrant and unique colors to aluminum products.












Multi-Color Anodizing Processes Types







Multi-color anodizing, also known as multi-color anodization, typically falls into three main types or categories:





Type I Anodizing:



Type I anodizing is a relatively simple form of anodization. It is primarily used for creating a protective oxide layer on the surface of aluminum and does not typically involve coloration. This type is focused on achieving the basic anodized finish with improved corrosion resistance and durability.






Type II Anodizing:



Type II anodizing, also known as decorative anodizing, is the most common method for achieving multi-color effects on aluminum. It allows for the incorporation of various colors into the oxide layer. Type II anodizing is suitable for applications where aesthetics and color customization are essential. It is the process often used in multi-color anodizing.






Type III Anodizing:



Type III anodizing, also known as hardcoat anodizing, is primarily focused on enhancing the hardness and wear resistance of the aluminum surface. While it can be used for coloring, its main purpose is to provide an extremely durable and abrasion-resistant finish. It is less commonly associated with multi-color effects.












What are the Methods of Anodizing and Coloring Metals?









Regarding the methods for coloring during anodization, there are several techniques used in Type II anodizing to achieve multi-color effects:





Dyeing: Different colored dyes are applied to specific areas or sections of the aluminum surface. These dyes are absorbed into the porous oxide layer created during anodization, resulting in the desired colors.



Masking: Masking off specific areas of the aluminum with resist materials before anodizing allows for selective coloring. The masked areas remain uncolored, creating patterns and designs.



Stenciling: Stencils can be used to apply dyes to create precise shapes or designs on the aluminum surface.



Selective Anodizing: This technique involves controlling the anodizing voltage and current to create different oxide layer thicknesses, resulting in variations in color.



Sequential Dyeing: By dyeing the aluminum multiple times with different colors in a specific sequence, a layered or gradient color effect can be achieved.





Each of these methods provides a means to customize and achieve multi-color effects during the anodization process, allowing for a wide range of design possibilities and aesthetics.












What Types of Acids are Used for Color Anodizing?








In anodizing processes, particularly for coloring aluminum, various types of acids are used as electrolytes in the anodizing bath. These acids play a crucial role in the formation of the oxide layer and the absorption of dyes for coloring. Here are some common types of acids used for coloring in anodizing:





Sulfuric Acid (H2SO4): Sulfuric acid is the most commonly used acid in anodizing processes, including multi-color anodizing. It is widely used for Type II anodizing, which is primarily focused on achieving colored finishes. Sulfuric acid anodizing provides good control over oxide layer thickness and is compatible with a wide range of dyes.



Chromic Acid (H2CrO4): Chromic acid anodizing is another method that can be used for coloring aluminum. However, it is less common today due to environmental and safety concerns associated with the use of chromates.



Phosphoric Acid (H3PO4): Phosphoric acid anodizing is primarily used for Type I anodizing, which is focused on providing a basic protective oxide layer. It is not commonly used for coloring purposes but may be employed in specific applications.



Tartaric-Sulfuric Acid: A mixture of sulfuric acid and tartaric acid is used in some specialty anodizing processes, such as architectural anodizing. This combination can produce unique color effects.



Oxalic Acid (H2C2O4): Oxalic acid is occasionally used for anodizing and coloring aluminum. It is known for producing a thinner, more delicate oxide layer compared to sulfuric acid, which can result in distinctive color effects.



Boric-Sulfuric Acid: A mixture of boric acid and sulfuric acid is used in some anodizing processes, particularly for specific industrial applications. This combination can influence the characteristics of the anodized layer.







The choice of acid depends on the specific requirements of the anodizing process, including the desired finish, color range, and environmental considerations. Sulfuric acid remains the most widely used acid for achieving a wide range of colors in multi-color anodizing, while other acids may be used in specialized applications or for unique color effects.












Color Anodizing vs Anodizing: What's the Difference?








Color Anodizing and Anodizing are two distinct surface treatment processes with notable differences in their purpose and execution:





Purpose:



Anodizing: The primary purpose of anodizing is to create an oxide layer on the surface of metals, typically aluminum. This layer enhances corrosion resistance, hardness, and wear resistance. Anodizing primarily focuses on improving the functional properties of the metal surface.



Color Anodizing: Color anodizing, also known as multi-color anodizing, aims to achieve not only the protective benefits of anodizing but also to add various colors to the metal surface. Its primary goal is to enhance visual appeal and design flexibility.







Color Effects:



Anodizing: Anodizing typically results in a natural silver or light gray oxide layer on the metal surface and does not involve adding colors.



Color Anodizing: The hallmark of color anodizing is its ability to produce a spectrum of different colors on the metal surface. This is achieved through techniques such as dyeing, masking, or stenciling.







Applications:



Anodizing: Anodizing is commonly used in industrial, automotive, aerospace, and other sectors where the focus is on corrosion resistance and functional improvements. It is less concerned with aesthetic appearance.



Color Anodizing: Color anodizing finds applications in fields where visual aesthetics and color customization are crucial. This includes jewelry, decorative arts, architectural design, and custom product manufacturing.







Process Methods:





Anodizing: The anodizing process typically involves immersing the metal in an electrolytic bath and passing an electric current through it to create the oxide layer. Coloring is not a standard part of the process.



Color Anodizing: Color anodizing includes additional steps such as dyeing, masking, engraving, or other techniques to introduce various colors to the metal. These steps are essential to achieving the desired visual effects.







In summary, while anodizing focuses on improving metal properties like corrosion resistance and hardness, color anodizing extends this process to add a diverse range of colors, making it ideal for applications where both functional and aesthetic considerations are important. The choice between the two depends on the specific requirements of the application.













Multi-Color Anodizing Advantages and Disadvantages






Multi-color anodizing, also known as multi-color anodization, offers several advantages and some potential drawbacks, depending on the application and specific requirements. Here are the key advantages and disadvantages of multi-color anodizing:







Advantages:





Aesthetic Versatility: One of the most significant advantages of multi-color anodizing is its ability to add vibrant and customizable colors to aluminum surfaces. This enhances the visual appeal of products and allows for creative design possibilities.



Design Flexibility: Multi-color anodizing provides designers and manufacturers with the flexibility to create intricate and unique color patterns. This is particularly valuable in industries where aesthetics play a crucial role, such as jewelry, decorative art, and architectural design.



Corrosion Resistance: Like standard anodizing, multi-color anodizing retains the inherent corrosion resistance of aluminum. This makes it suitable for both decorative and functional applications, even in outdoor or harsh environments.



Durability: The anodized layer formed during multi-color anodizing is harder than the underlying aluminum, improving scratch and wear resistance. This durability ensures that the colors remain vibrant over time.



Electrical Insulation: Multi-color anodized surfaces can exhibit electrical insulation properties, making them suitable for electronic and electrical applications.



Versatility: Multi-color anodizing can be applied to a wide range of aluminum products, from small decorative items to larger architectural elements. Its versatility makes it valuable across various industries.







Disadvantages:





Complex Process: Multi-color anodizing is a more complex and involved process compared to standard anodizing. It requires additional steps, such as masking, dyeing, and precise control of color application.



Limited Color Range: While multi-color anodizing offers a broad spectrum of colors, achieving specific shades may require experimentation. Certain colors may be more challenging to attain.



Environmental Considerations: Some dyes and chemicals used in the multi-color anodizing process may have environmental implications. Proper disposal and handling of these substances are essential to minimize environmental impact.



Cost: Multi-color anodizing can be more expensive than standard anodizing due to the added steps and customization involved. The cost may vary depending on the complexity of the design.



Specialized Equipment: Implementing multi-color anodizing may require specialized equipment and skilled personnel, which can increase production costs.







In summary, multi-color anodizing is a valuable process for applications where visual aesthetics and design flexibility are paramount. While it offers numerous advantages, including enhanced aesthetics and corrosion resistance, it also involves added complexity, potential environmental considerations, and cost factors that should be carefully considered when selecting this surface treatment method.











Selecting Colors Multi-Color Anodizing Precautions and Tips








Selecting colors for multi-color anodizing involves a creative process that allows you to achieve the desired visual effects for your aluminum products. Here are some considerations and tips for choosing colors in multi-color anodizing:





1. Design Goals:



Start by defining the design goals for your project. Consider the overall look and feel you want to achieve. Is it a vibrant and bold design, a subtle and elegant one, or something else entirely?






2. Color Palette:



Create a color palette that suits your design objectives. Think about the specific colors you want to incorporate and how they will complement each other. Consider using color theory to guide your choices, such as complementary or analogous color schemes.





Color Palette






3. Brand Identity:



If your project is related to a brand or company, ensure that the chosen colors align with the brand's identity and message. Consistency in color choices can reinforce brand recognition.






4. Product Functionality:



Consider the intended use of the product. If it's a functional item, think about how the colors will affect its usability. For decorative pieces, aesthetics may be the primary concern.






5. Audience and Market:



Understand your target audience and the market you're catering to. Different colors can evoke different emotions and responses, so choose colors that resonate with your audience.






6. Material and Finish:



Take into account the base material (aluminum) and the anodized finish. Some colors may look different on anodized aluminum compared to other materials. Consider how the anodized surface texture will interact with the colors.

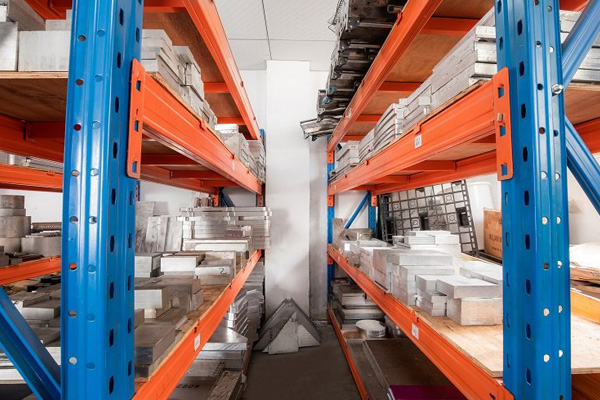

aluminum cnc machining Material






7. Test Samples:



Create test samples or prototypes to visualize how the
