The Ultimate Guide to Stainless Steel/Steel CNC Machined Parts Powder Coating Surface Finishes
Category: cnc
What is Powder Coated Stainless Steel/Steel?
Powder coating stainless steel or steel is a surface treatment method that involves the even application of powder coating onto the surface of stainless steel or ordinary steel (typically carbon steel). Subsequently, through a baking or curing process, the powder coating is transformed into a robust protective layer. This method aims to provide corrosion resistance, aesthetics, and protection.
Can Stainless Steel/Steel be Powder Coated?
Yes, both stainless steel and regular carbon steel can be powder coated. Powder coating is a versatile surface finishing process that can be applied to a variety of metals, including stainless steel, carbon steel, aluminum, and more. It is a highly effective method for providing a durable and aesthetically appealing finish to metal surfaces.
Here's a brief overview of how powder coating is applied to stainless steel and steel:
Surface Preparation: The steel surface is cleaned and prepared to remove any oil, grease, rust, or other contaminants. This step ensures good adhesion of the powder coating.
Application of Powder: The powder coating material, which is a dry powder composed of finely ground particles of pigment and resin, is electrostatically charged and then sprayed onto the prepped steel surface. The charged particles adhere to the grounded metal surface.
Curing Process: The coated steel is then placed in an oven or heated chamber where the powder particles melt, flow, and chemically bond to form a continuous and durable coating. The curing process typically involves heating the steel to a specific temperature for a set duration.
Cooling and Solidification: After the curing process, the coated steel is allowed to cool and solidify, resulting in a smooth and uniform powder coating finish.
Powder coating offers several advantages, including excellent corrosion resistance, a wide range of color options, high durability, and an environmentally friendly application process. It's commonly used in various industries for decorative and protective finishes on steel and other metal substrates.
Why Choose Stainless Steel/Steel Powder Coating?
Choosing powder coating for stainless steel or regular steel surfaces offers a range of benefits that make it a preferred finishing method in various industries. Here are some compelling reasons to choose stainless steel/steel powder coating:
Corrosion Resistance:
Powder coating provides a robust and durable protective layer that enhances the steel's resistance to corrosion and rust. This is crucial for extending the lifespan of the metal, especially in harsh environments.
Aesthetically Pleasing:
Powder coating offers a smooth and attractive finish to the steel surface. The process provides a wide variety of color options and gloss levels, allowing for customization to match design requirements and enhance visual appeal.
Durable Finish:
The cured powder coating forms a hard finish that is more resistant to chipping, scratching, and fading compared to traditional liquid coatings. It ensures a long-lasting, resilient surface.
Environmental Friendliness:
Powder coating is an eco-friendly finishing method as it produces little to no volatile organic compounds (VOCs) or hazardous air pollutants. It aligns with sustainability goals and complies with environmental regulations.
Cost-Effectiveness:
Powder coating is cost-effective due to its efficiency in material usage, reduced waste, and shorter processing times. It often requires minimal touch-ups or reworks, saving on overall costs.
Uniform Coating Thickness:
Powder coating provides an even coating thickness across the entire surface, ensuring consistent appearance and protection. It eliminates the risk of uneven application, which can occur with traditional liquid coatings.
Resistance to Chemicals and Solvents:
The cured powder coating is highly resistant to various chemicals and solvents, making it suitable for applications where exposure to these substances is expected.
Versatility in Applications:
Powder coating can be applied to a wide range of steel products and components, from automotive parts and appliances to architectural elements and industrial equipment. It is versatile and adaptable to diverse application needs.
Easy Maintenance:
Maintaining powder-coated steel surfaces is simple and often requires only regular cleaning with mild detergents and water. The finish retains its appearance and performance for an extended period with minimal maintenance efforts.
In conclusion, selecting stainless steel/steel powder coating enhances the durability, aesthetics, and protective properties of the metal, making it an excellent choice for a variety of applications across different industries.
Can Plastic be Powder Coated?
Yes, plastic can be powder coated, but the process differs from powder coating metal surfaces. Powder coating plastic involves a unique set of considerations and techniques. Here's an overview of how plastic can be powder coated:
Type of Plastic:
Not all plastics are suitable for powder coating. Thermosetting plastics, which can withstand the high temperatures of the curing process without melting or deforming, are typically used. Common thermosetting plastics include certain types of thermosetting polyester and epoxy-based plastics.
Surface Preparation:
The plastic surface must be properly cleaned and prepared. This involves removing any contaminants, oils, or residues that could interfere with adhesion.
Powder Application:
The powder coating material used for plastic is designed to adhere to the specific type of plastic being coated. The powder is electrostatically charged and sprayed onto the plastic surface. The charged particles are attracted to the grounded plastic substrate.
Curing Process:
The plastic, now coated with the powder, is placed in an oven or heated chamber. The curing process involves heating the plastic to a temperature that allows the powder to melt and bond to the surface without causing damage to the plastic. The exact temperature and duration vary depending on the plastic type and powder coating material.
Cooling and Solidification:
After curing, the plastic is allowed to cool and solidify, resulting in a durable and attractive powder coating finish.
It's important to note that the success of powder coating plastic depends on selecting the appropriate type of plastic, powder coating material, and curing process. Not all plastics are suitable for this method, and it's essential to work with experienced professionals who understand the specific requirements of powder coating plastic.
Powder coating plastic can provide benefits such as improved durability, corrosion resistance (for certain types of plastics), and enhanced aesthetics, making it a viable option for various plastic products and components.
Which Metal Parts are Suitable for Powder Coat Finish?
Powder coating is a versatile and effective finishing method for various metal parts. The suitability of metal parts for a powder coat finish depends on factors such as the type of metal, the application, and the desired outcome. Here are common metals material that are suitable for powder coating:

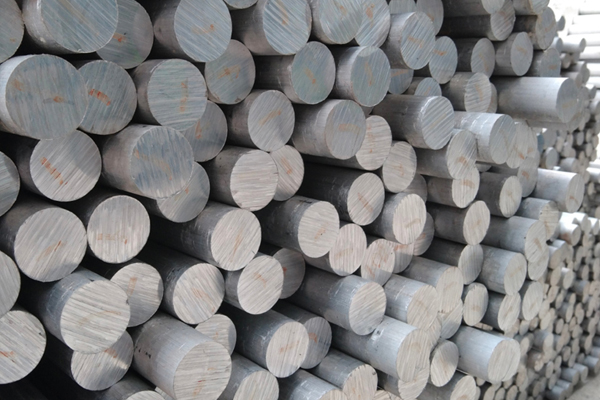

Steel: Carbon steel, including mild steel and stainless steel, is highly suitable for powder coating. It provides excellent adhesion and durability. Powder-coated steel is widely used in industries such as automotive, construction, furniture, and appliances.
Aluminum: Aluminum is another metal that can be effectively powder coated. It offers good corrosion resistance and is commonly used in architectural applications, outdoor equipment, and automotive components.
Cast Iron: Cast iron parts can be powder coated to enhance their appearance and protect them from corrosion. Common applications include ornamental cast iron pieces, cookware, and machinery components.

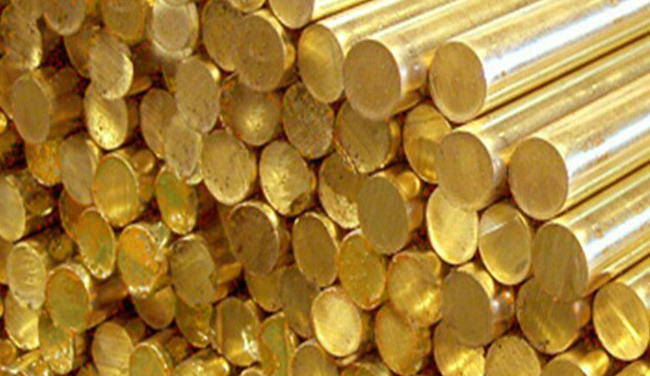

Brass: While less common than steel or aluminum, brass can also be powder coated. This is often done for decorative purposes or to provide a specific color or finish to brass components.
Copper: Like brass, copper is not as frequently powder coated as other metals, but it is possible to apply a powder coat finish for certain applications where color or protection is desired.
Galvanized Steel: Galvanized steel is sometimes powder coated to enhance its appearance and provide additional corrosion resistance. The powder coat can be applied directly to galvanized steel after proper surface preparation.
Wrought Iron: Wrought iron is commonly powder coated for outdoor furniture, railings, and decorative items. Powder coating helps protect wrought iron from rust and provides various color options.
Magnesium: Magnesium parts used in automotive and aerospace industries can be powder coated for protection and appearance.
Zinc: Zinc surfaces can be powder coated to enhance their appearance and add a layer of protection. This is often seen in architectural applications.
It's important to note that the success of powder coating depends on proper surface preparation, choosing the right powder coating material, and following the correct curing process. Additionally, certain metals may require specific pre-treatment processes to ensure proper adhesion and durability of the powder coat.
In summary, powder coating is a versatile method suitable for a wide range of metal parts, and it offers durability, aesthetics, and protection for various applications. The choice of metal and the specific requirements of the application will determine which metal is the most suitable for powder coating.
Stainless Steel/Steel Parts Powder Coating Process Flow
The powder coating process for stainless steel/steel parts involves several steps to ensure a durable and high-quality finish. Here's an overview of the typical process flow for powder coating metal parts:
Preparation:
Cleaning: The first step is thorough cleaning of the metal parts to remove any contaminants, oils, rust, or other impurities. This cleaning process ensures that the powder adheres to the surface properly.

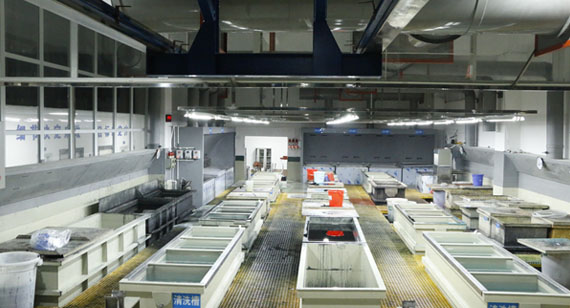

Surface Pre-Treatment: Depending on the material and specific requirements, surface pre-treatment may be necessary. This can involve processes like chemical etching, phosphating, or sandblasting to improve adhesion and corrosion resistance.
Powder Application:
Powder Coating Booth: The cleaned and pre-treated metal parts are placed in a specially designed powder coating booth.

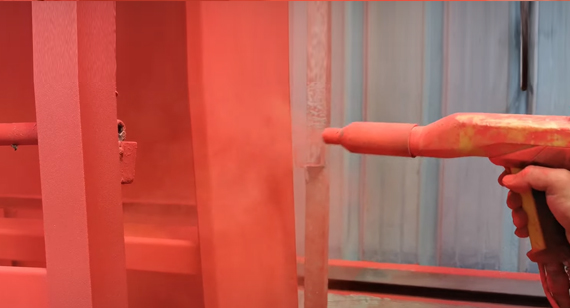

Powder Coating Application: A specialized powder coating gun electrostatically charges the powder particles and sprays them onto the metal parts. The charged particles adhere to the grounded metal surface, creating an even and uniform coat.
Curing:
After the powder coating is applied, the metal parts are moved to a curing oven or chamber. The curing process involves heating the parts to a specific temperature, typically ranging from 350°F to 450°F (177°C to 232°C), for a set duration. During curing, the powder melts and chemically reacts to form a solid and durable coating. The curing time depends on the powder type and thickness.
Cooling:
Once the curing process is complete, the metal parts are allowed to cool down to room temperature. This cooling period helps solidify the powder coating.

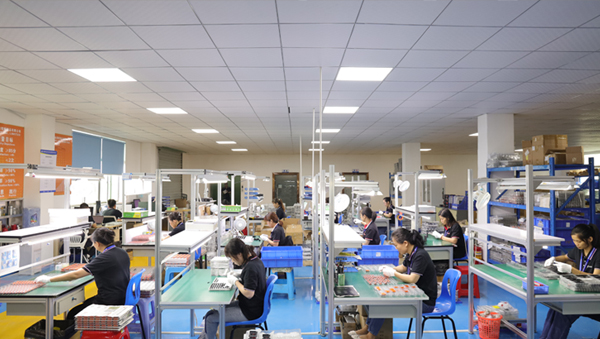

Inspection:
The coated parts undergo a thorough inspection to ensure that the coating is uniform, adheres properly, and meets quality standards. Any defects or imperfections are addressed at this stage.

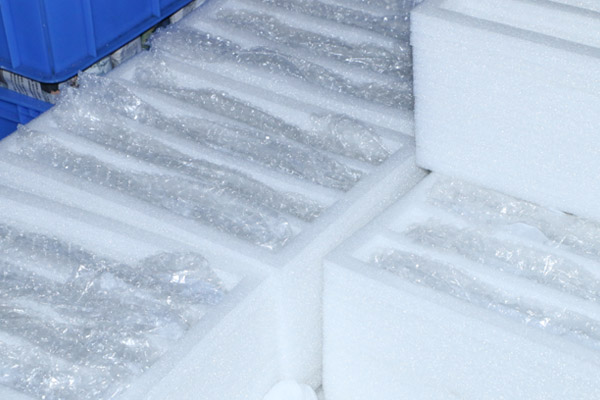

Packaging and Shipping:
After passing inspection, the finished metal parts are packaged and prepared for shipment to their intended destination.
The powder coating process offers several advantages, including excellent corrosion resistance, a wide range of color options, and a durable finish. It is commonly used in various industries for both functional and decorative purposes.
It's important to note that the specific details of the process can vary depending on factors such as the type of metal, the powder coating material, and the equipment used. Proper surface preparation, precise curing temperatures, and adherence to safety and environmental guidelines are crucial for achieving high-quality powder-coated stainless steel/steel parts.
Stainless Steel/Steel Parts Powder Coating Thickness
The thickness of a powder coating on stainless steel or steel parts can vary depending on several factors, including the application requirements, industry standards, and the specific type of coating being used. However, in general, powder coating thickness is typically measured in terms of mils (1 mil = 0.001 inches) or micrometers (1 micrometer = 0.001 millimeters).
Here are some common guidelines for powder coating thickness:
Standard Thickness: A typical powder coating thickness for most applications falls within the range of 2 to 4 mils (50 to 100 micrometers). This thickness provides a balance between durability and cost-effectiveness.
Functional Coatings: In applications where corrosion resistance, impact resistance, or other functional properties are crucial, a thicker coating may be applied, ranging from 4 to 10 mils (100 to 250 micrometers) or more.
Decorative Coatings: For decorative or architectural applications, a thinner coating of around 1 to 2 mils (25 to 50 micrometers) may be sufficient to achieve the desired appearance without sacrificing the quality of the finish.
Industry Standards: Some industries and applications may have specific standards and requirements for powder coating thickness. It's essential to adhere to these standards to ensure performance and compliance.
Part Geometry: The shape and geometry of the metal part can influence the thickness of the powder coating. Recessed areas and corners may receive a thicker coating to ensure full coverage and protection.
Powder Type: Different types of powder coatings, such as epoxy, polyester, or polyurethane, may have varying recommended thicknesses. It's important to follow the manufacturer's guidelines for the specific powder being used.
Application Method: The method of powder application, such as electrostatic spray, fluidized bed, or dip coating, can also affect the thickness of the coating. Proper application techniques are essential to achieve the desired thickness.
It's important to note that achieving the correct powder coating thickness is critical to the performance and durability of the finish. Too thin a coating may not provide adequate protection, while an excessively thick coating may lead to issues like poor adhesion or surface defects.
Quality control measures, such as regular thickness measurements and adherence to industry standards, can help ensure that the powder coating thickness meets the desired specifications for stainless steel or steel parts.
What Colors can be Powder Coated on Stainless Steel/Steel Parts?
Powder coating offers a wide range of color options for stainless steel and steel parts. The available colors are diverse and can be customized to meet specific design and application requirements. Here are some of the common colors that can be powder coated on stainless steel and steel parts:
Standard Colors:
White
Black
Gray
Silver
Red
Blue
Green
Yellow
Brown
Custom Colors:
Custom colors can be achieved by mixing different powder coating pigments to create unique shades and hues. This allows for a high degree of color customization to match branding or design preferences.
Metallic Finishes:
Powder coatings with metallic effects are available to mimic the appearance of metals like gold, bronze, copper, or aluminum. These finishes can add a luxurious or decorative touch to parts.
Textures and Special Effects:
Powder coatings are not limited to solid colors. They can also create textured or special effects finishes such as hammertone, wrinkle, and sandpaper-like textures.
Clear Coats:
Clear powder coatings are used to protect the natural appearance of stainless steel while providing a durable and transparent protective layer.
Gloss Levels:
The gloss level of a powder coating can be adjusted to achieve different surface finishes, including high gloss, semi-gloss, satin, and matte.
Custom Branding Colors:
Companies often choose powder coating colors that match their branding or corporate identity, allowing for consistency across product lines.
Color Matching:
Powder coating suppliers and manufacturers can provide color matching services to ensure that the chosen color matches a specific sample or swatch.
It's important to note that the availability of colors may vary depending on the specific powder coating manufacturer and the type of powder coating material used. Some manufacturers may offer a comprehensive color catalog, while others can create custom colors upon request.
When selecting a color for powder coating stainless steel or steel parts, it's essential to consider factors such as aesthetics, branding, application environment, and color durability. Powder coating not only provides a vibrant and long-lasting finish but also offers protection against corrosion and wear.
What Effect does Powder Coating have on Stainless Steel/Steel Parts? Size, Accuracy
Powder coating can have several effects on stainless steel and steel parts, including size and accuracy considerations. Here are the primary effects to consider:
Coating Thickness: Powder coating adds a protective layer to the surface of stainless steel or steel parts. The thickness of this coating can vary based on application requirements but is generally measured in mils (thousandths of an inch) or micrometers (microns). The coating thickness should be factored into size and tolerance considerations.
Dimensional Changes: Powder coating can introduce slight dimensional changes to parts due to the added thickness of the coating. While the impact is typically minimal, it's essential to account for this in the design and manufacturing process, especially for parts with tight tolerances.
Surface Smoothness: The quality of the powder coating application can affect the surface smoothness of parts. High-quality powder coating processes produce smooth and even finishes. However, textured or specialty finishes may introduce surface irregularities, which should be considered in design.
Color Uniformity: Powder coating provides an even and uniform color across the entire surface of a part, enhancing its appearance. Variations in color uniformity can be controlled through proper powder coating techniques and quality control measures.
Corrosion Resistance: One of the significant benefits of powder coating is its ability to enhance corrosion resistance. Coated stainless steel or steel parts are better protected against environmental factors, which can extend their lifespan and maintain dimensional stability over time.
Electrical Properties: Powder coating may affect the electrical conductivity of metal parts, particularly if the coating is insulating. For applications where electrical conductivity is essential, special consideration is needed.
Thermal Properties: Powder coating can impact the thermal properties of metal parts, affecting heat transfer or insulation characteristics. This is especially relevant in applications involving heat-sensitive components.
Adherence and Bond Strength: Proper surface preparation and powder coating application are critical to ensure that the coating adheres well to the metal surface. A strong bond between the coating and the metal is essential for durability.
To mitigate potential size and accuracy issues when powder coating stainless steel or steel parts, manufacturers should follow best practices, including:
Precise Surface Preparation: Thoroughly clean and prepare the metal surface to ensure proper adhesion and uniform coating thickness.
Tolerance Consideration: When designing parts, account for the expected coating thickness and its impact on dimensions and tolerances.
